SR-SPI - DMX to SPI Controller

The SR-SPI is a SPI LED controller which can work under RF mode and DMX mode to control a variety of digital IC LED strips. While under RF mode, it receives RF signal and can be compatible with all SR-1009 series remote controls, meanwhile it also can be WiFi controlled by mobile phones through WiFi Transmitter. While under DMX mode, it works as a DMX decoder and can be compatible with DMX512 masters.

Key Features

• Compatible with kinds of digital IC LED strip
• Can work under RF or DMX mode
• Under RF mode,it matches with all SR-1009 series controllers, it also can be controlled by mobile phone through WiFi transmitter
• Under DMX mode,it can work as DMX decoder with standard DMX512 compliant interface to set DMX address easily

Specifications

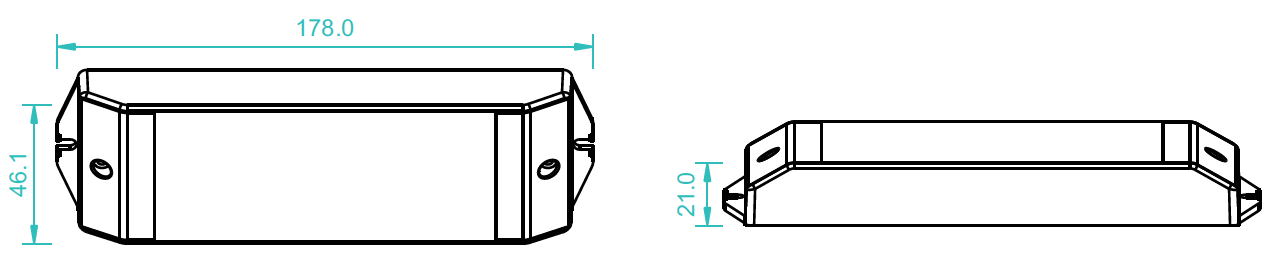

Product Dimension

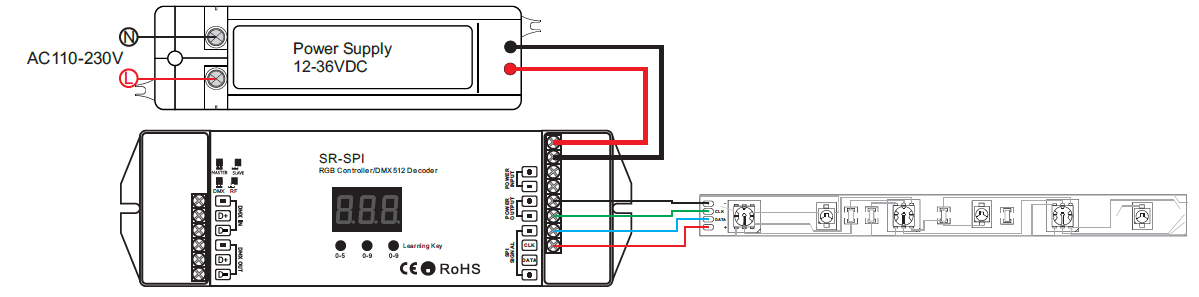

Wiring Diagram Under RF Mode

Wiring Diagram Under DMX Mode

For more info and an Instruction manual on this product please get in touch via our contacts page.

User Manual
