Dimmer Switch 2 - 2 Zone Wall Plate DMX Controller

Dimmer Switch 2 (SR-2202T1) is a DMX512 master controller that designed in accordance with standard protocol DMX512(1990) and offers both switch on/off and smooth brightness dimming functions for 2 zones of Lighting. Adopting high strength ultra sensitive touch glass panel, the dimmer controller features smooth dimming and switching functions without any flickering. Each controller can control 2 different zones separately. Smooth dimming range from 0.1%-100% via 256 level logarithmic dimming without any flickering delivers comfortable light for the human eye. It is easy to install on to a standard UK back box.

Key Features

• 256 level logarithmic dimming, smooth dimming without any flickering from 0.1% to 100%
• Switch on/off or dim using 2 touch sensitive switches
• Control 2 different zones separately
• Easy to use touch control interface
• Glass High Strength Front
• Compatible with DMX512 Decoders

This wall plate controller is ideal for Lighting installations in bars, clubs, shops, kitchens and homes. Our wide range of DMX decoders will enable this light switch to control practically any lighting product you have from LED strip light to a 240V chandelier. Get in touch for more details.

Performance Parameters

Operation voltage: 12-24V DC (power supply not included)
Signal output: DMX512
Size 86mm x 86mm x 41mm

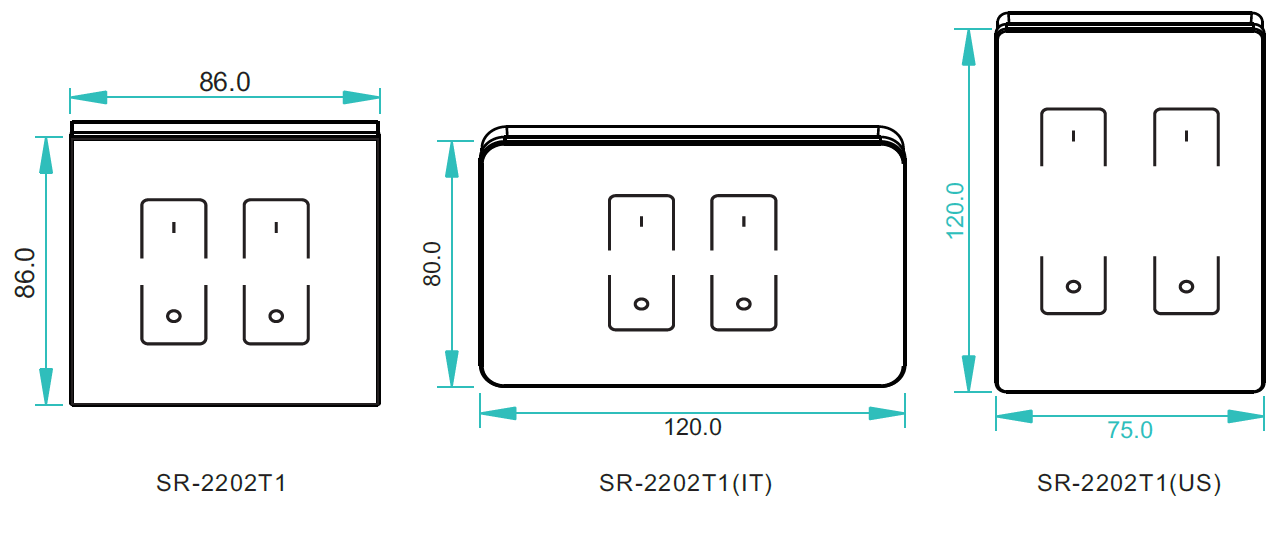

Product Dimension

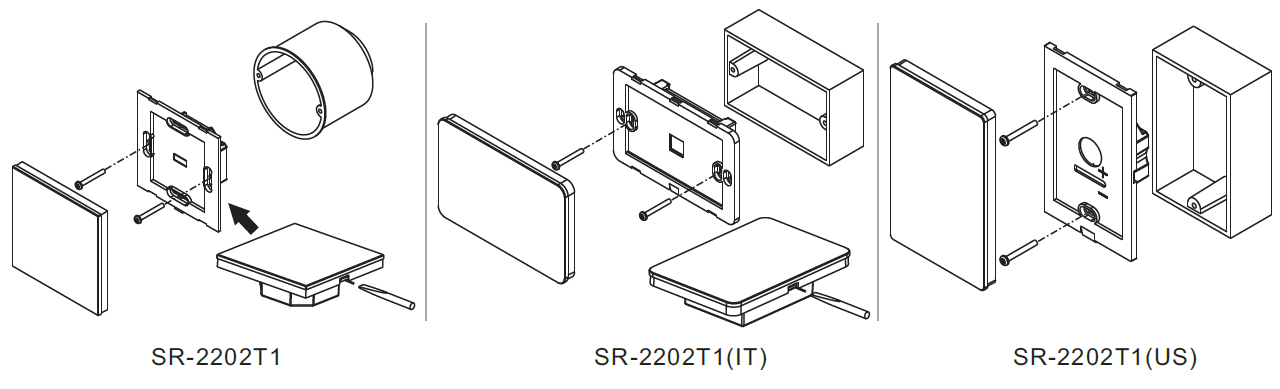

Installation Diagram

Wiring Diagram
